VERA Test

Vera_integrated on Verilator

Build the vera_integrated project:

cd build/sim-a7-100/gw/projects/vera_integrated
make vera_integrated_sim

Execute the generated Verilator model:

./Vmodel

Vmodel opens a window where the VGA output is rendered pixel-by-pixel. You should see the following frame appear:

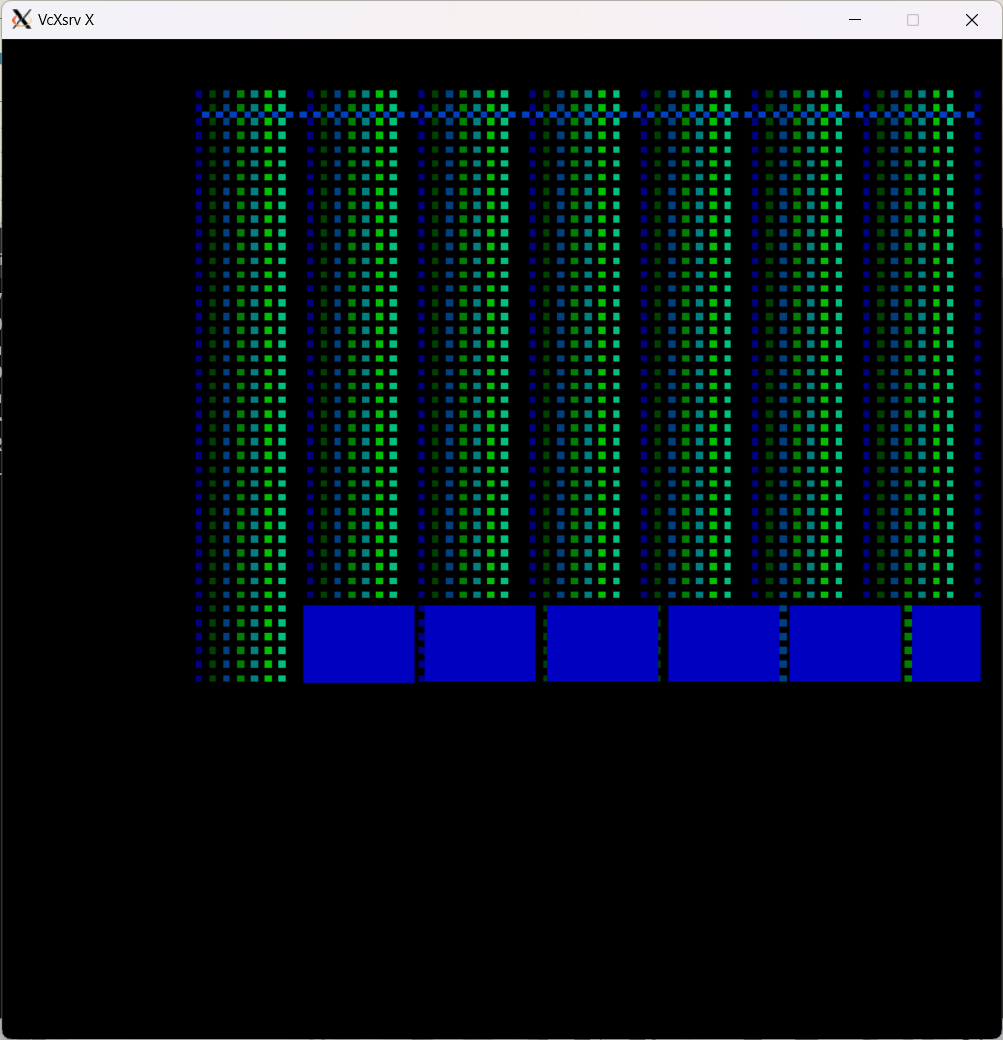

Frame generated by vera_integrated Verilator model.

The terminal window should look like this:

Vera_integrated Verilator model terminal window output.

Vera_integrated on the Arty A7

Hook up the VGA PMOD as described here.

Build the vera_integrated project in an Arty A7 build tree:

cd build/arty-a7-100/gw/projects/vera_integrated
make vera_integrated_bit

Download the generated bitstream file to the Arty A7:

make vera_integrated_load

The display should now show a bunch of colored squares. Here's a picture of my setup.

Arty A7 Setup for the vera_integrated Test SoC.
